Xi LP 200W 0.3-1.05A S1 WL I165

Nguồn Xi LP 200W 0.3-1.05A S1 WL I165 ( Dimming 10 cấp công suất)

U-in	100 – 277Vac
Freq	50/60Hz
Ι-in	1.2 – 0.8Aac
PF	0.95
Prated	200Wmax
U-out	142 – 286 Vdc
Irated	0.3 – 1.05Adc
ta	-40…+55ºC
tc	85ºC
U-out (open circuit) Max	= 350Vdc
Dimming 2-10 cấp	CÓ
Kết nối 1-10V	CÓ
Dali	Không
Xuất xứ	CHINA
Trọng lượng	700g
Kích thước	165*68*40 mm

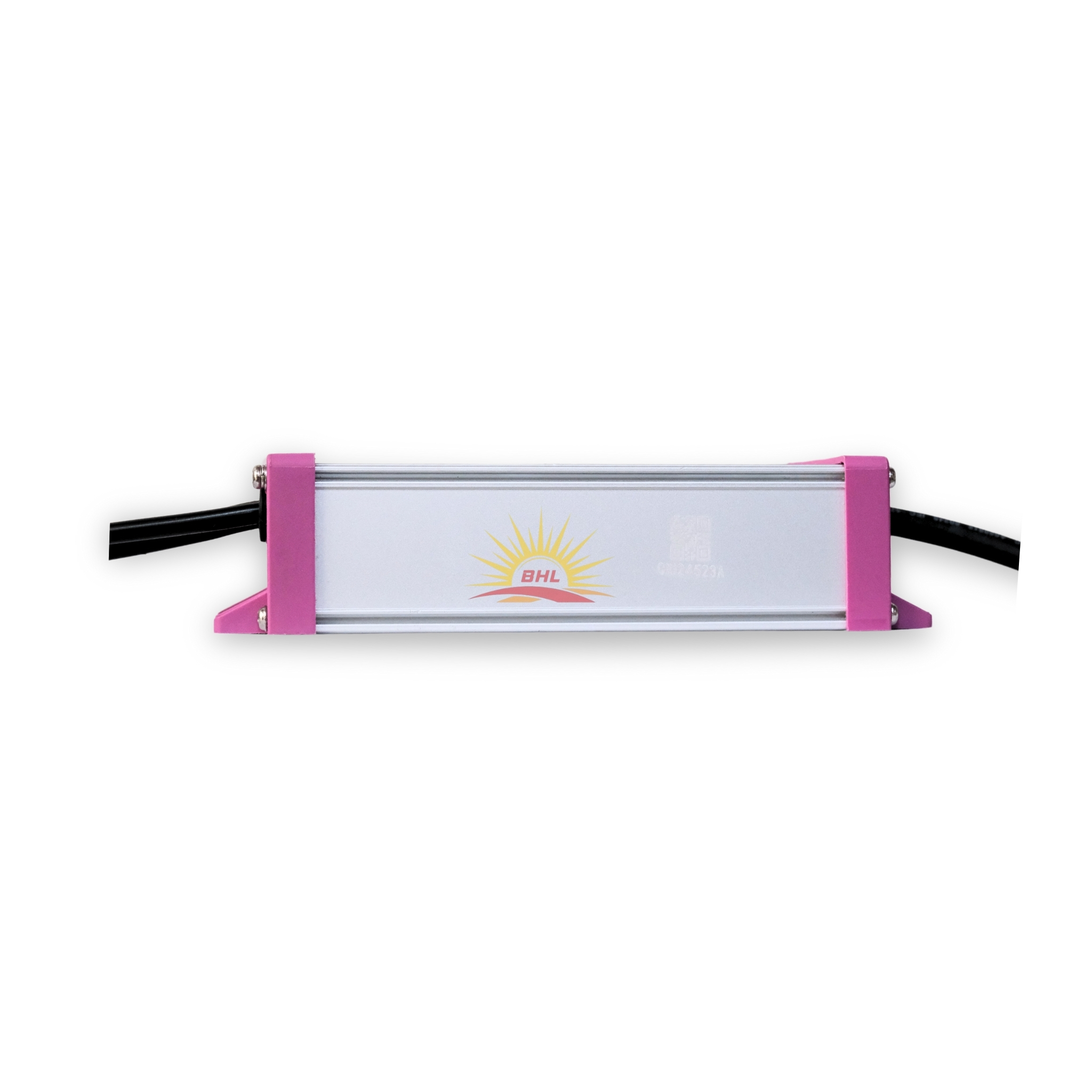

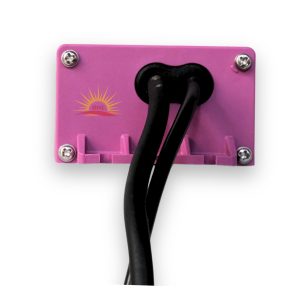

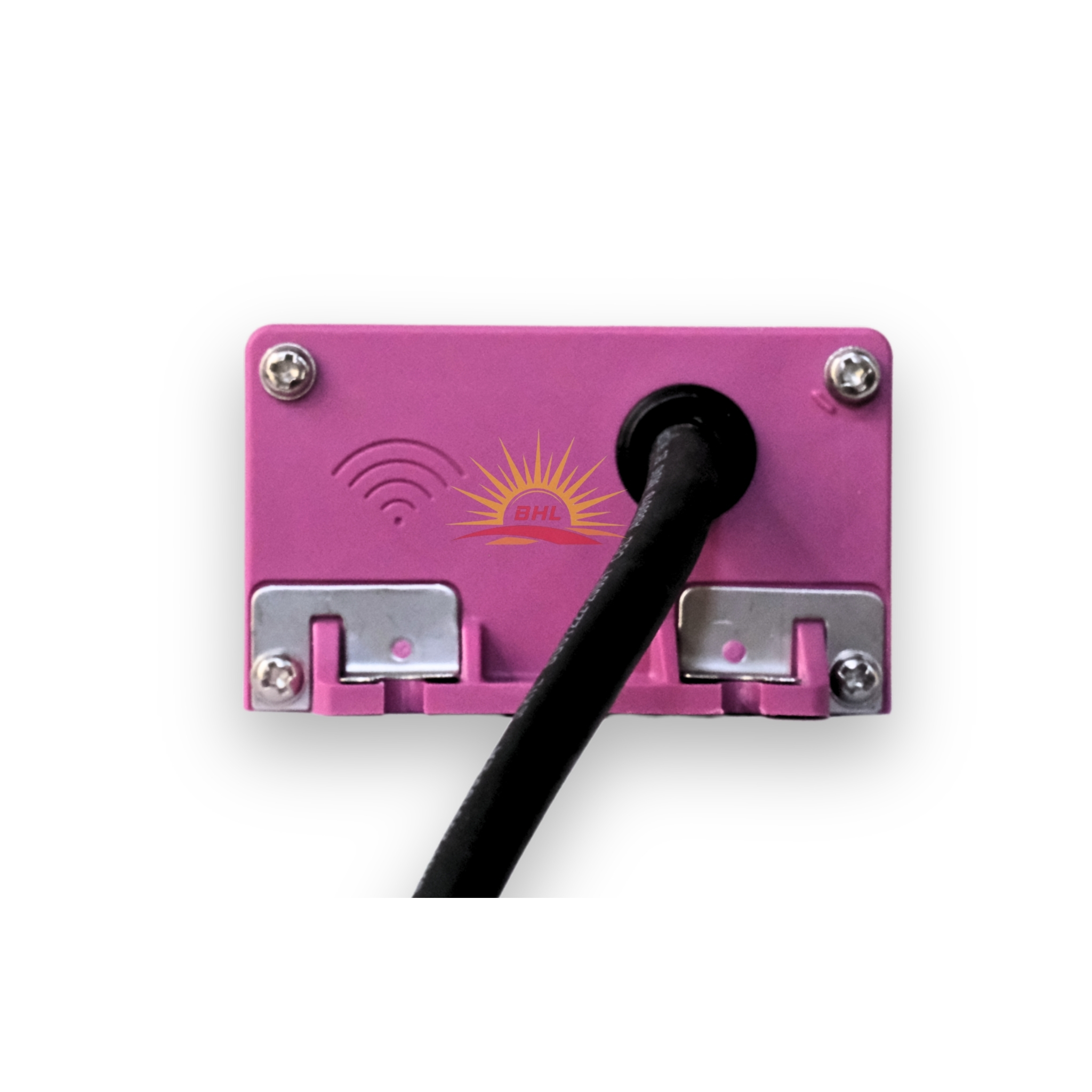

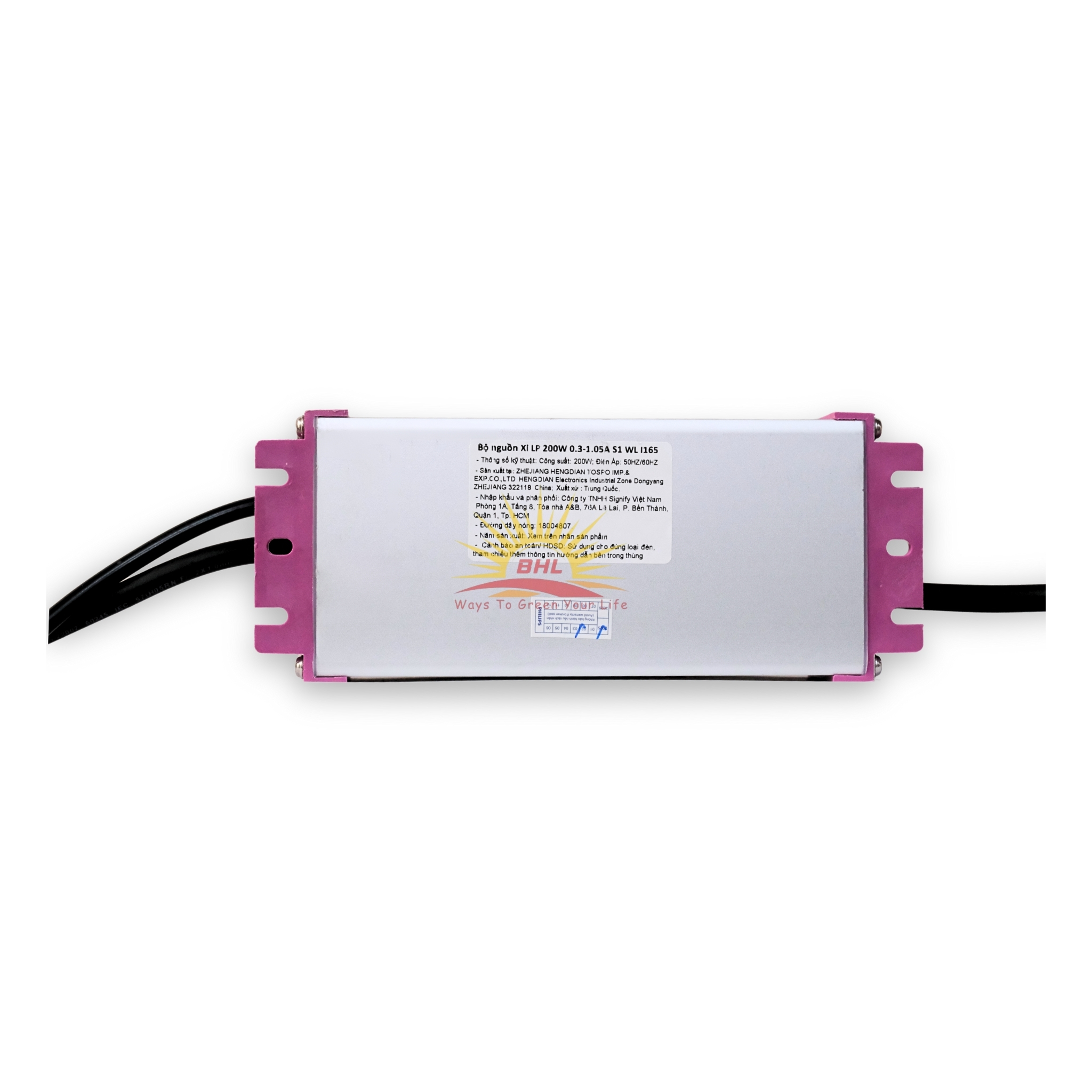

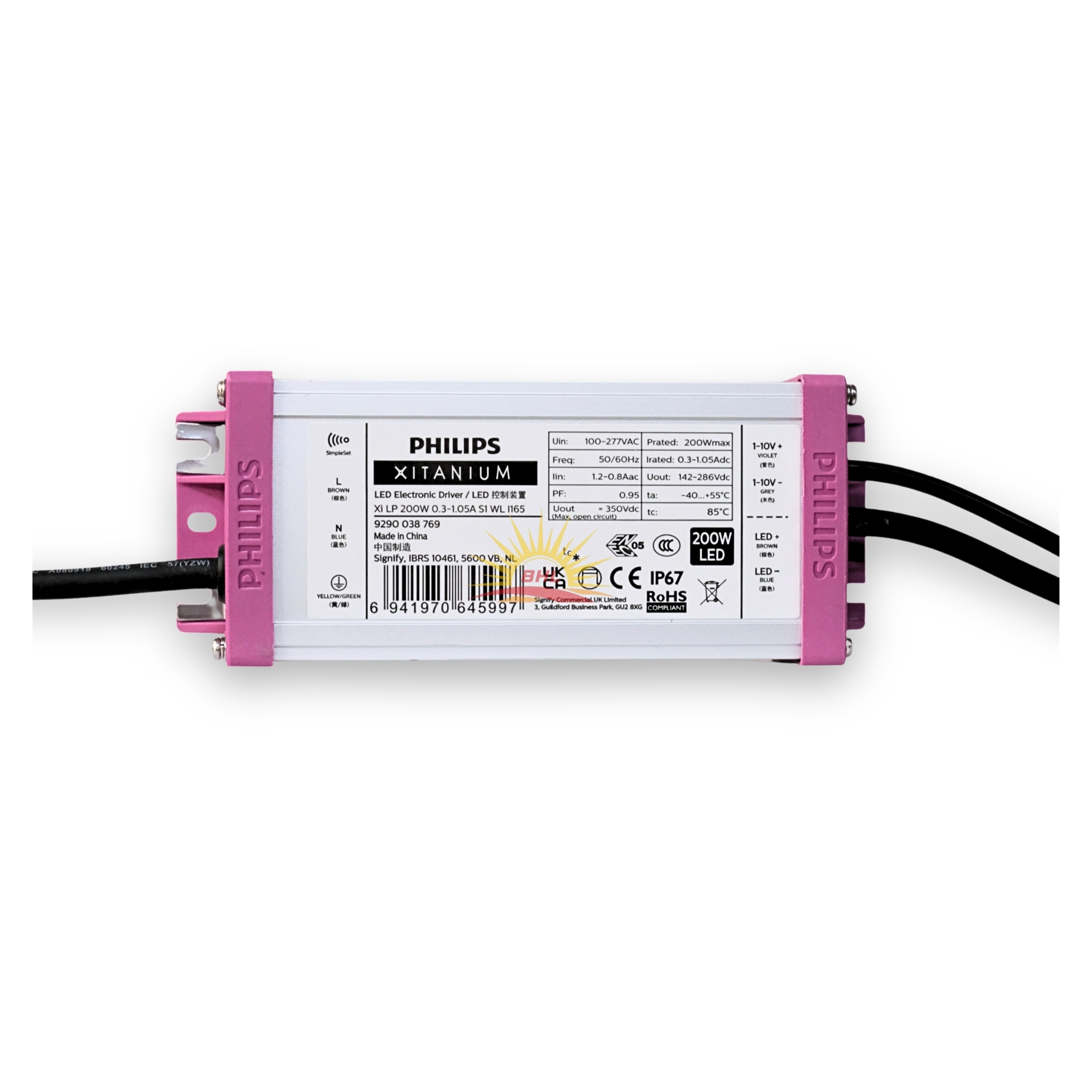

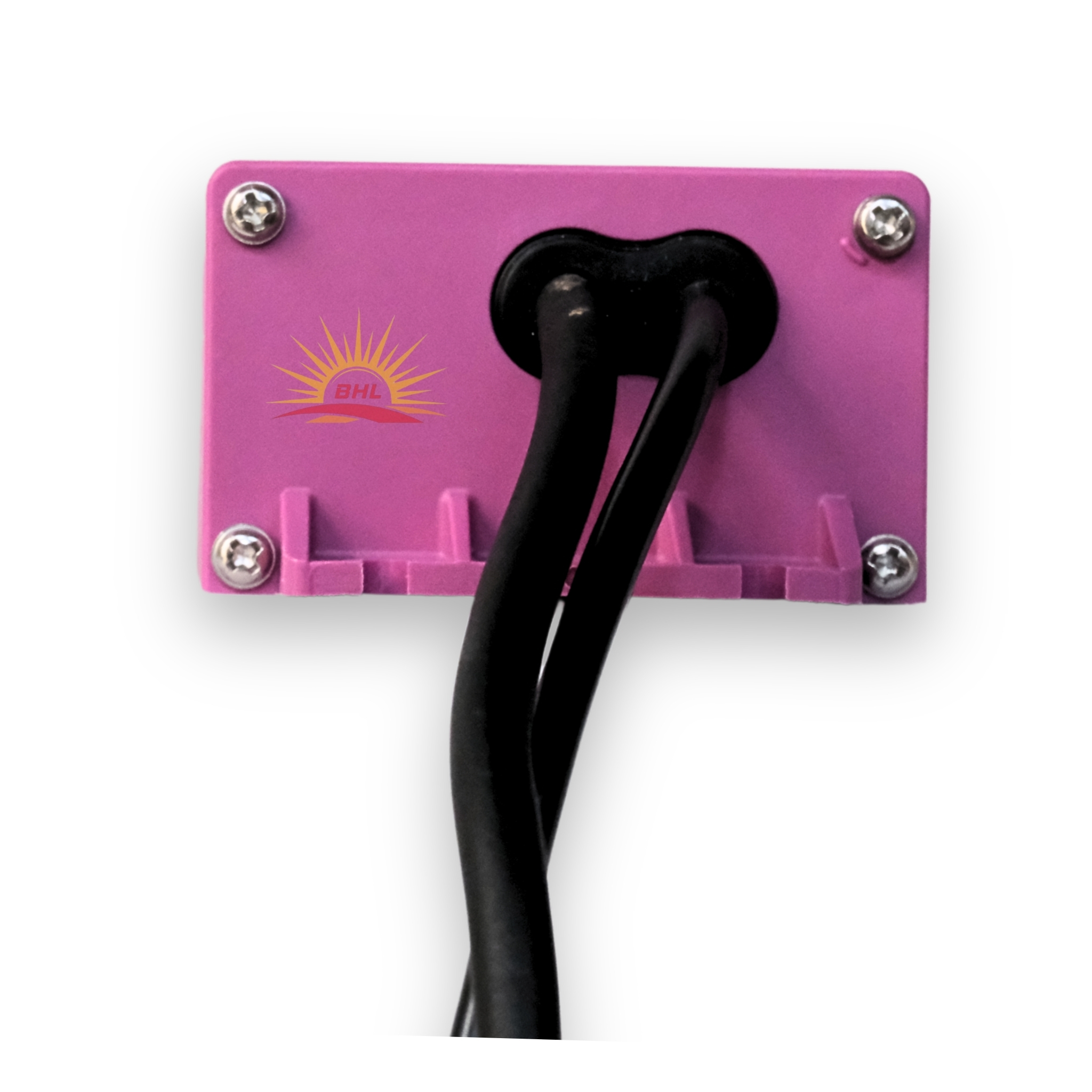

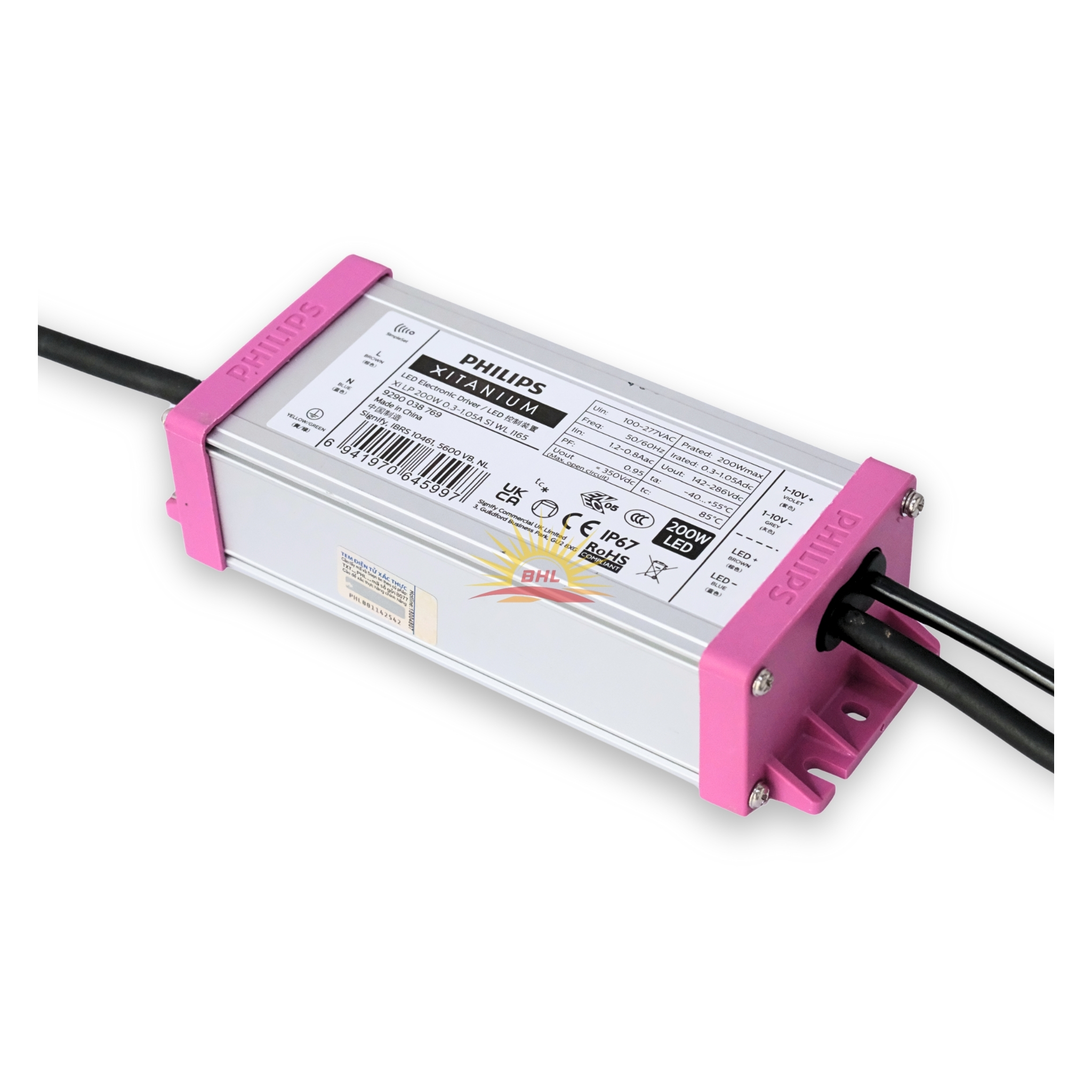

Ảnh thực tế của Bộ nguồn/Driver đèn Led Philips Xi LP 200W 0.3-1.05A S1 WL I165





Xitanium Lite Programmable (LP) LED drivers are value engineered to deliver a carefully selected programming feature set and high-end
performance, making it a preferred choice for outdoor applications. One of the key features is SimpleSet®, an easy and fast way to configure
the driver without the need to power the driver. The WideLine family can operate on input voltage 100-277Vac and ensure 100% performance
from 202-254Vac.
Features
• A selected programmable feature set via SimpleSet®,
based on NFC technology
•A djustable Output Current (AOC)
•D imming (1-10V) and reversed dimming available
• 10-step DynaDimmer
• Constant Light Output (CLO)
• WideLine input voltage range: 100-277Vac
• High surge protection: 6/10kV (DM/CM)
• IP67 with 50,000 hours lifetime
• High efficiency up to 94%
Benefits
• Easy to design-in and configure for
Class I application
• SKU reduction
• Enables various applications such as
tunnel lighting
• Stand alone energy saving
• Constant light output performance
over time
• Low maintenance cost and peace of
mind in extreme conditions
Application
• Road and street lighting
•A rea and flood lighting
• T unnel lighting
June
